DAB Jet pump cast iron 1" female thread 8bar 3,8A 230VAC green self priming type Gardenjet 82 M

Part number 7033378
Skip image gallery
Select your item below or order directly via full product table
Power
Type
All displayed prices are gross. Please log in or contact sales for custom pricing.
Excl. VAT €285.60 / 1 pcs
€285.60 / pcs
Incl. VAT €285.60 / 1 pcs
€285.60 / pcs
2 in stock in Veghel, NL - Item %s is ready to ship
pcs
Packed per:
1 pcs
MSQ:
1 pcs

Frequently bought together

Profec Pump screw set cast iron black 1 1/2" x 1" female threaded nut x female thread 25bar DVGW
1137208
Profec Pump screw set cast iron black 1 1/2" x 1" female threaded nut x female thread 25bar DVGW

€13.90
Pressure switch 1/4" female thread 1,6 - 4,6bar 12A 230VAC type PC-SK2
7031133
Pressure switch 1/4" female thread 1,6 - 4,6bar 12A 230VAC type PC-SK2

€12.80
Fersil Quick coupler PVC-U 75 mm x 1 1/4" x 75 mm male part Fersil x female thread x glue socket 8bar green type sprinkler connection
0221227
Fersil Quick coupler PVC-U 75 mm x 1 1/4" x 75 mm male part Fersil x female thread x glue socket 8bar green type sprinkler connection

€26.30
Mechanical seal 18 x 30,9 mm type FN18 B
0992043
Mechanical seal 18 x 30,9 mm type FN18 B

€18.50
Mechanical seal 21 x 31,2 mm type FN20 C
0992048
Mechanical seal 21 x 31,2 mm type FN20 C

€19.70
Mechanical seal 16 x 26,9 mm type FN15 D
0992042
Mechanical seal 16 x 26,9 mm type FN15 D

€13.70
Mechanical seal 13 x 26 mm type AR13 A
0992041
Mechanical seal 13 x 26 mm type AR13 A

€7.90
Mechanical seal 12 x 26 mm type AR12 E
0992040
Mechanical seal 12 x 26 mm type AR12 E

€9.40
Cable with plug type 3 x 1,5mm² for pumps up to 1,5kW
0920286
Cable with plug type 3 x 1,5mm² for pumps up to 1,5kW

€19.70
Greener choice Greener choice
Azud Drip irrigation hose PE 16 mm x 1,0 mm 39mil 4bar 1,6ltr/h 50cm black 500m type Premier PC AS
7036860
Azud Drip irrigation hose PE 16 mm x 1,0 mm 39mil 4bar 1,6ltr/h 50cm black 500m type Premier PC AS

€0.70

Technical details

  • Size
    1"
  • Model
    self priming
  • MWC
    47
  • Suction
    1 "
  • Material impeller 1
    technopolymer
  • Max. temperature
    35 °C
  • Press
    1 "
  • Colour
    green
  • Connection
    female thread
  • Voltage
    230VAC
  • Max flow rate
    3.6 m³/h
  • Frequency
    50 Hz
  • Ampere
    3,8 A
  • Pump body
    cast iron
  • Material
    cast iron
  • EAN
    4019305744492
  • Part number
    7033378
  • Manufacturer
    DAB

Dimensions

  • Cb-1
    144 mm
  • Cl-1
    127 mm
  • G-1
    111 mm
  • H
    268 mm
  • H
    268 mm
  • L
    410 mm
  • L
    410 mm
  • Mr
    192 mm
  • O
    9 mm
  • W
    178 mm
  • W-1
    178 mm
  • ØDi-1
    1 "
  • ØDi-2
    1 "

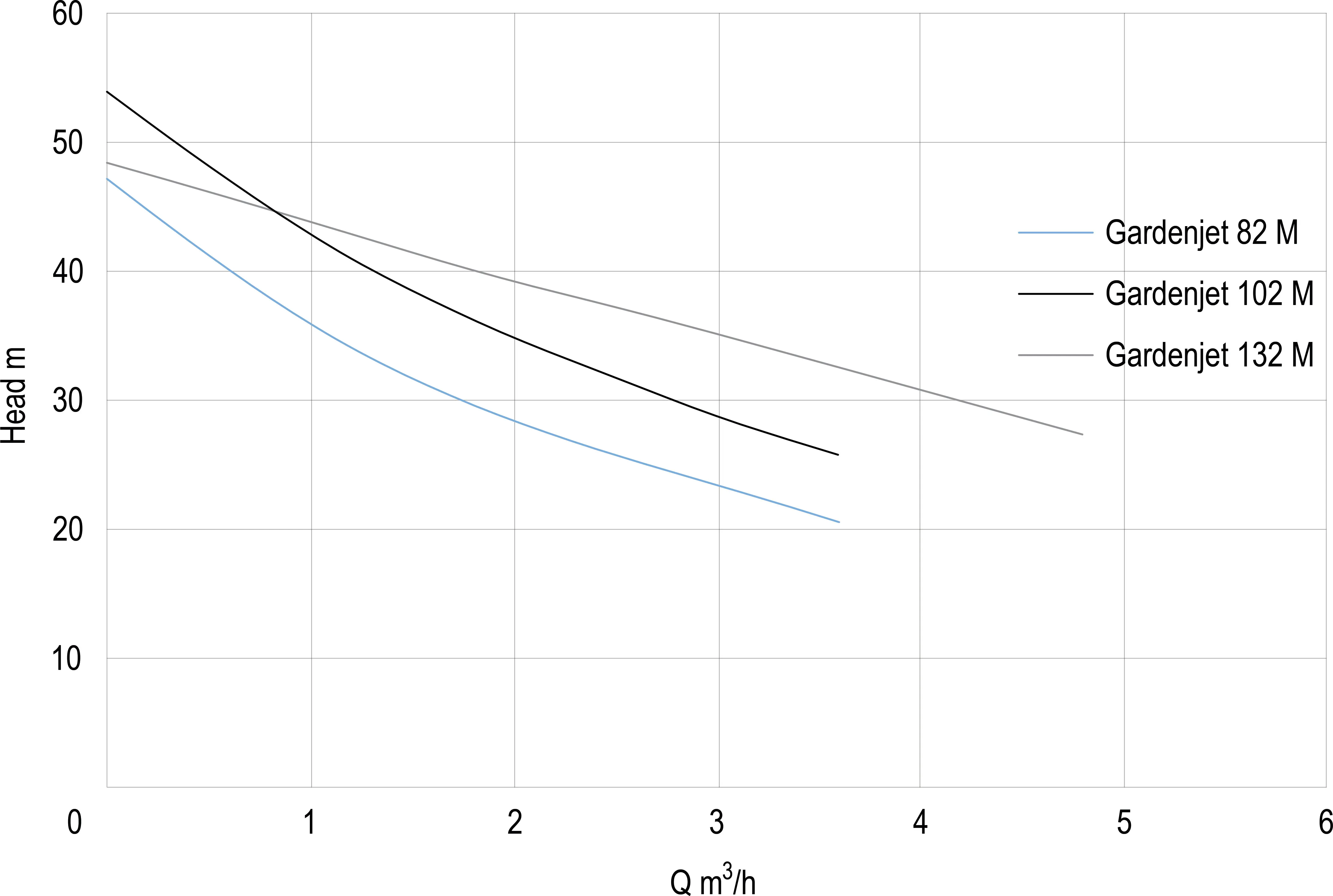

Graph
Technical drawing

Product description

Pump will be supplied with cable and DIN plug.

Read more Read less

Barcode

4019305744492

Variants

Part number
Price
Packed per
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
7033378
€285.60
1
1
(2)
7033379
€323.40
1
1
(2)
7033380
€338.70
1
1
