DAB Submersible pump reinforced plastic 1 1/4" male thread 1,3A 230VAC green/black type Verty Nova 200M with float switch

Part number 7038197
Skip image gallery
DAB Submersible pump reinforced plastic 1 1/4" male thread 1,3A 230VAC green/black type Verty Nova 200M with float switch
DAB Submersible pump reinforced plastic 1 1/4" male thread 1,3A 230VAC green/black type Verty Nova 200M with float switch
DAB Submersible pump reinforced plastic 1 1/4" male thread 1,3A 230VAC green/black type Verty Nova 200M with float switch
DAB Submersible pump reinforced plastic 1 1/4" male thread 1,3A 230VAC green/black type Verty Nova 200M with float switch
Select your item below or order directly via full product table
Power
Type
Output Power
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price to pay excl. VAT €259.46 / 1 pcs
€259.46 / pcs
Price to pay incl. VAT €313.95 / 1 pcs
€313.95 / pcs
19 in stock in Veghel, NL - Item %s is ready to ship, minimum delivery time: %s working days
pcs
Box qty:
1 pcs
MSQ:
1 pcs

Frequently bought together

Profec Nr. 290 Plug cast iron galvanised 1 1/4" male thread 25bar DVGW
1029007
Profec Nr. 290 Plug cast iron galvanised 1 1/4" male thread 25bar DVGW

€8.92
Profec Socket PVC-U 1 1/4" female thread 16bar grey with stainless steel ring type reinforced
0100724
Profec Socket PVC-U 1 1/4" female thread 16bar grey with stainless steel ring type reinforced

€6.97
Profec Ball valve single union PVC-U 1 1/4" female thread 10bar DN32 grey type Safe 550
0112153
Profec Ball valve single union PVC-U 1 1/4" female thread 10bar DN32 grey type Safe 550

€16.93
Profec Nr. 23 Pipe nipple brass 1 1/4" male thread 40bar 60 mm
0701842
Profec Nr. 23 Pipe nipple brass 1 1/4" male thread 40bar 60 mm

€38.11
Profec Nipple hexagonal PVC-U 1 1/4" male thread 10bar grey
0110539
Profec Nipple hexagonal PVC-U 1 1/4" male thread 10bar grey

€3.37
Profec Elbow 90° PVC-U 1 1/4" female thread 10bar grey with stainless steel ring type reinforced
0100303
Profec Elbow 90° PVC-U 1 1/4" female thread 10bar grey with stainless steel ring type reinforced

€6.62
Tavlit Coupler PP 1 1/4" female thread 10bar black type Self Seal
7033589
Tavlit Coupler PP 1 1/4" female thread 10bar black type Self Seal

€3.27
Foot valve spring loaded PA 1 1/4" female thread 10bar white type 2730
0440932
Foot valve spring loaded PA 1 1/4" female thread 10bar white type 2730

€17.02
Profec Non return valve brass 1 1/4" female thread 10bar type 5
0420555
Profec Non return valve brass 1 1/4" female thread 10bar type 5

€24.92
Profec Foot valve spring loaded brass 1 1/4" female thread 8bar DN32 stainless steel 304
0404958
Profec Foot valve spring loaded brass 1 1/4" female thread 8bar DN32 stainless steel 304

€18.92

Technical details

  • Colour
    green/black
  • Connection
    male thread
  • Material impeller 1
    technopolymer
  • Material
    reinforced plastic
  • Max flow rate
    7 m³/h
  • Max. temperature
    35 °C
  • Voltage
    230VAC
  • Float
    integrated
  • Frequency
    50 Hz
  • Pump body
    technopolymer
  • MWC
    6,9
  • Ampere
    1,3 A
  • Size
    1 1/4"
  • EAN
    4019305777223
  • Part number
    7038197
  • Manufacturer
    DAB

Dimensions

  • H-1
    318 mm
  • L
    225 mm
  • W-1
    158 mm

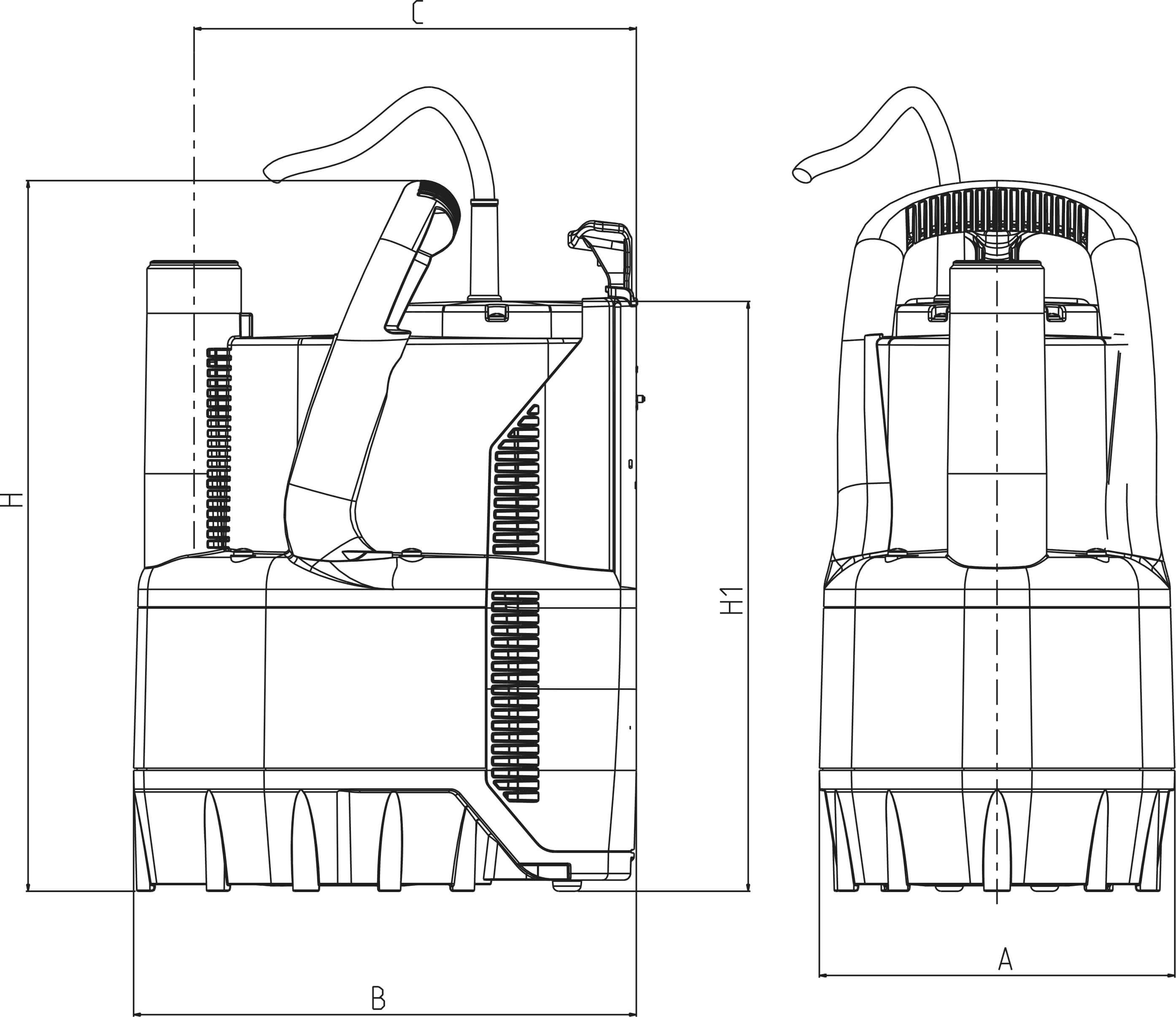

Technical drawing
Pump table

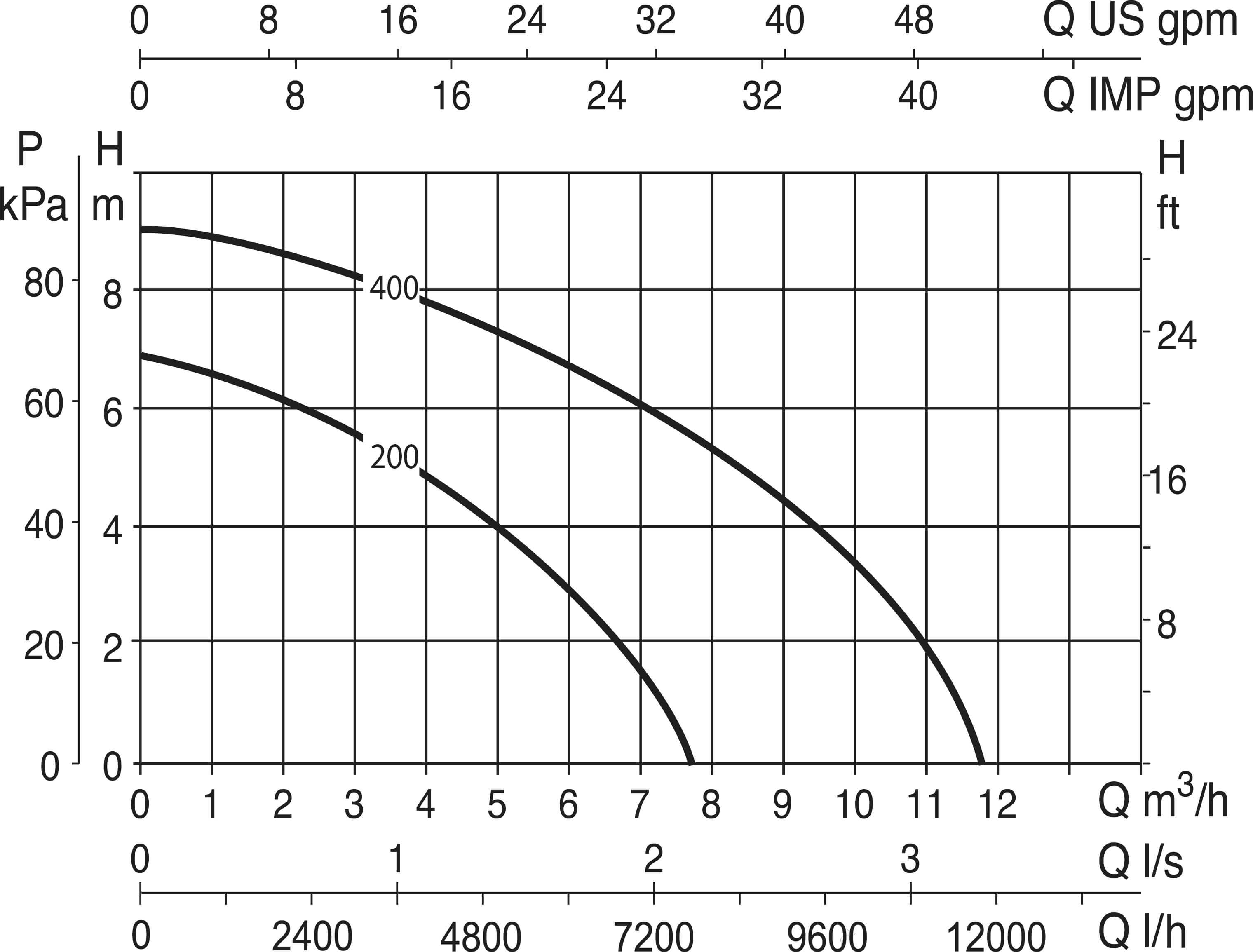

Graph

Barcode

4019305777223

Variants

Part number
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
7038197
€259.46
1
1
(19)
7038198
€313.92
1
1
