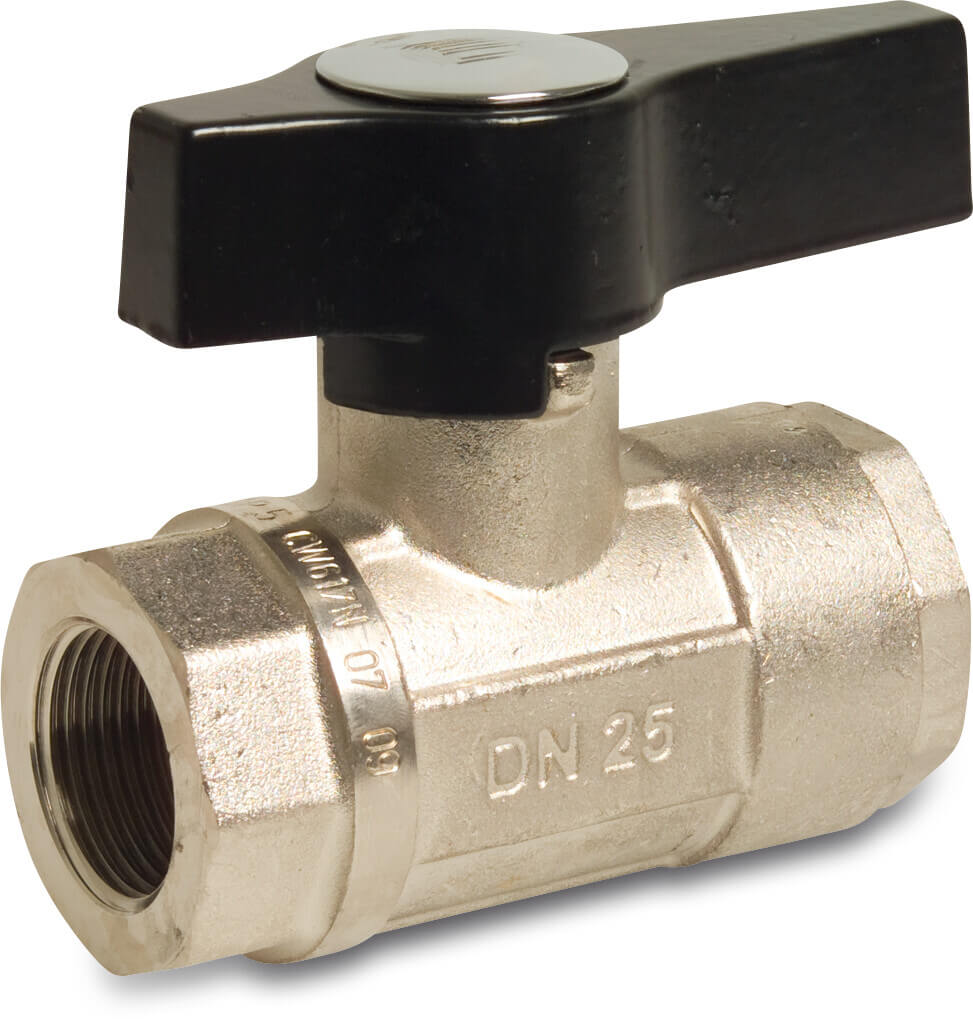

Ball valve brass nickel plated 3/4" female thread 210bar type Hipress 2321

Part number 0401277

Manuals & drawings

Shop the full range here
All displayed prices are gross. Please log in or contact sales for custom pricing.
Price to pay incl. VAT €63.80 / 1 pcs
€63.80 / pcs
Price to pay excl. VAT (€52.73 / 1 pcs)
Box qty:
18 pcs
MSQ:
1 pcs
Out of stock, please contact us regarding availability
pcs

Frequently bought together

Profec Y-piece hard chrome plated brass 3/4" male thread x male thread x female thread 30bar
Profec Y-piece hard chrome plated brass 3/4" male thread x male thread x female thread 30bar

€11.07
Ball valve PP 3/4" female thread x male thread 6bar black
Ball valve PP 3/4" female thread x male thread 6bar black

€6.51
Profec Ball valve PVC-U 3/4" female thread 10bar DN20 grey type Safe 550
Profec Ball valve PVC-U 3/4" female thread 10bar DN20 grey type Safe 550

€10.13
Profec Ball valve PVC-U 3/4" female thread 16bar DN25 grey type Safe 625
Profec Ball valve PVC-U 3/4" female thread 16bar DN25 grey type Safe 625

€14.62
Multi-Fit Elbow 90° brass nickel plated 3/4" male thread x female thread 20bar KIWA
Multi-Fit Elbow 90° brass nickel plated 3/4" male thread x female thread 20bar KIWA

€8.28
Multi-Fit Deck elbow 90° brass nickel plated 3/4" female thread x male thread 20bar KIWA
Multi-Fit Deck elbow 90° brass nickel plated 3/4" female thread x male thread 20bar KIWA

€10.60
Click connector PVC-U 3/4" male click x female thread jade green
Click connector PVC-U 3/4" male click x female thread jade green

€3.30
Profec Click connector brass 3/4" male thread x female click
Profec Click connector brass 3/4" male thread x female click

€10.70
Multi-Fit T-piece 90° brass nickel plated 3/4" male thread x female thread x male thread 20bar KIWA
Multi-Fit T-piece 90° brass nickel plated 3/4" male thread x female thread x male thread 20bar KIWA

€10.14
Globe valve top brass 3/4" male thread 10bar DN20 type 1801
Globe valve top brass 3/4" male thread 10bar DN20 type 1801

€12.45

Technical details

  • Material
    brass
  • Colour lever
    black
  • Surface treatment
    nickel plated
  • Operation
    lever
  • Material seal
    PTFE
  • Handle material
    aluminium
  • Connection
    female thread
  • Temperature range
    -10°C - 80°C
  • Pressure
    210 bar
  • Type
    Hipress 2321
  • EAN
    4019305101035
  • Part number
    0401277
  • Manufacturer
    Unbranded

Dimensions

  • F-1
    16.3 mm
  • ØDf
    20 mm
  • ØDi-2
    3/4 "
  • ØDi-1
    3/4 "
  • Lb
    95 mm
  • F-2
    16.3 mm
  • Ct-1
    75 mm
  • R
    110 mm

h1web-bosta-customizations.pdp.similarProducts.title

Ball valve brass nickel plated 3/8" female thread 210bar type Hipress 2321
Ball valve brass nickel plated 3/8" female thread 210bar type Hipress 2321

€52.73
3-way ball valve L-bore under brass nickel plated 1/4" female thread 25bar type L-bore 3210 bottom connection
3-way ball valve L-bore under brass nickel plated 1/4" female thread 25bar type L-bore 3210 bottom connection

€75.53
3-way ball valve T-bore brass nickel plated 3/8" female thread 16bar DN10 type T-bore side connection
3-way ball valve T-bore brass nickel plated 3/8" female thread 16bar DN10 type T-bore side connection

€83.93
3-way ball valve L-bore brass nickel plated 1/4" female thread 16bar DN8 type L-bore side connection
3-way ball valve L-bore brass nickel plated 1/4" female thread 16bar DN8 type L-bore side connection

€80.75
VIR Static balancing valve brass 1" female thread 25bar DN25 WRAS type 9515
VIR Static balancing valve brass 1" female thread 25bar DN25 WRAS type 9515

€115.98
Profec Ball valve brass nickel plated 4" female thread 25bar type 100
Profec Ball valve brass nickel plated 4" female thread 25bar type 100

€343.77
Itap Ball valve brass nickel plated 4" female thread 14bar type 090
Itap Ball valve brass nickel plated 4" female thread 14bar type 090

€468.02
Profec Ball valve brass nickel plated 5" female thread 20bar type 119
Profec Ball valve brass nickel plated 5" female thread 20bar type 119

€1,089.06
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

€8.54
Profec Ball valve brass nickel plated 1/2" female thread 25bar type 108
Profec Ball valve brass nickel plated 1/2" female thread 25bar type 108

€21.59

Barcode

4019305101035

Variants

Part number
Price
Box qty
MSQ
Stock
0401275
€52.73
48
1
0401276
€52.73
40
1
(147)
0401277
€52.73
18
1
0401278
€52.73
4
1
