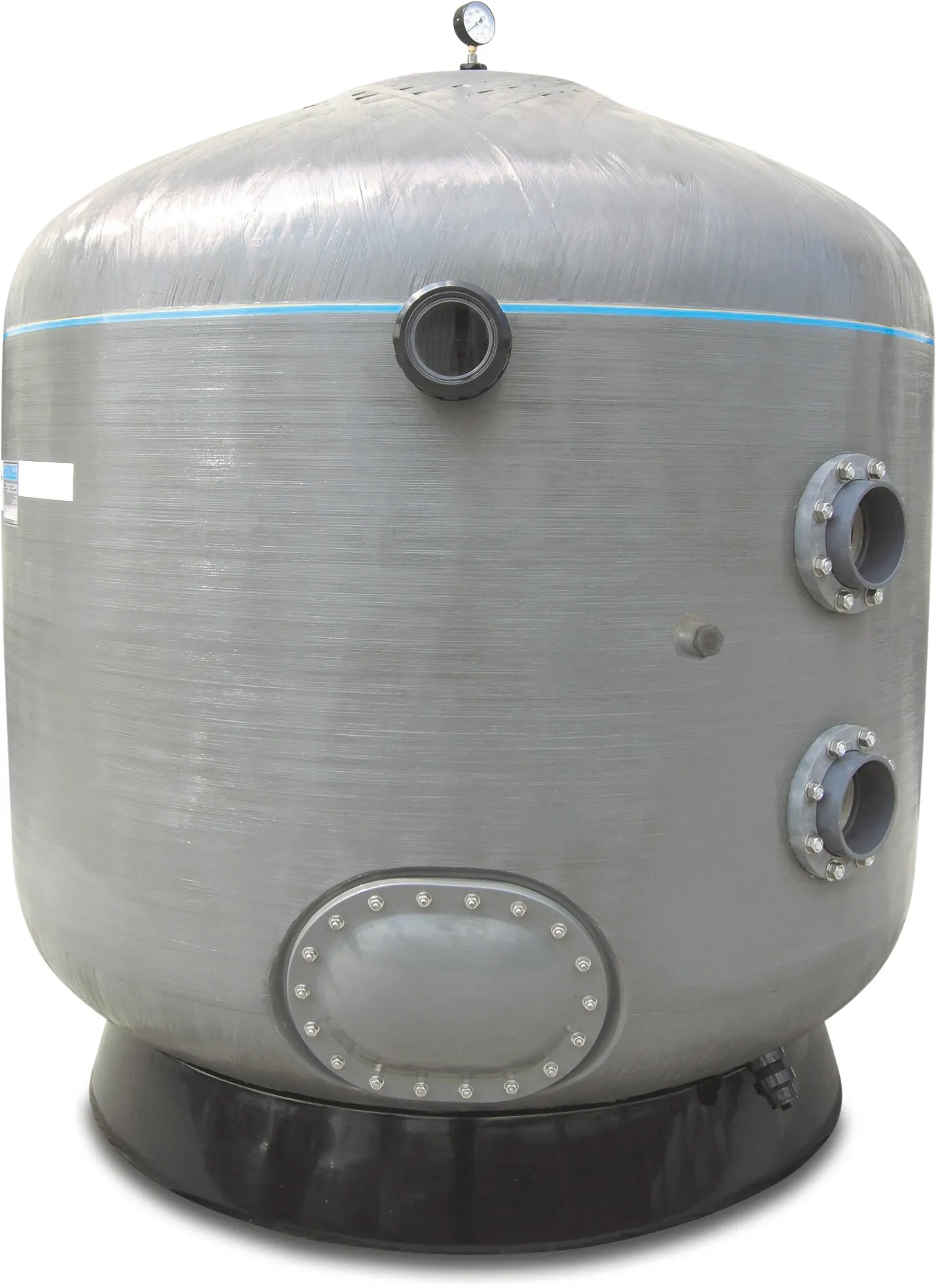

Waterco Commercial sand filter fibreglass 3"/90mm flange 4bar type SMDD1050
Part number 7029509
Downloads
All displayed prices are gross. Please log in or contact sales for custom pricing.
Incl. BTW
6 851,16 € / 1 pcs
6 851,16 € / pcs
Excl. VAT (6 851,16 € / 1 pcs)
Excl. VAT (6 851,16 € / 1 pcs)
Packed per:
1 pcs
MSQ:
1 pcs
Technical details
-
Pressure4 bar
-
Materialfibreglass
-
Sand1665 kg
-
Connectionflange
-
Size3"/90mm
-
Max. temp.40 °C
-
Filter area0.87 m²
-
EAN4019305717540
-
Part number7029509
-
ManufacturerWaterco
Product description
Waterco commercial sand filter SMDD is an upgraded version of SMD series. Besides micron fibreglass winding technology and “Fish Tail” lateral configuration, Easy Reach Air Release System and service hatch have been implemented as well. SMDD model is available in 4 bar, 6 bar, 8 bar and 10 bar pressure ratings.
Features:
- 1,2 m bed depth
- Ultra smooth bobbin finish
- Large double yoke lid with lifting eye
- Large clear sight glass
- Large stable base
- Service hatch
- Easy reach airbleed
- Flanged connections
- Fish Tail lateral
- Optional nozzle plate
- 10 years tank warranty
Barcode

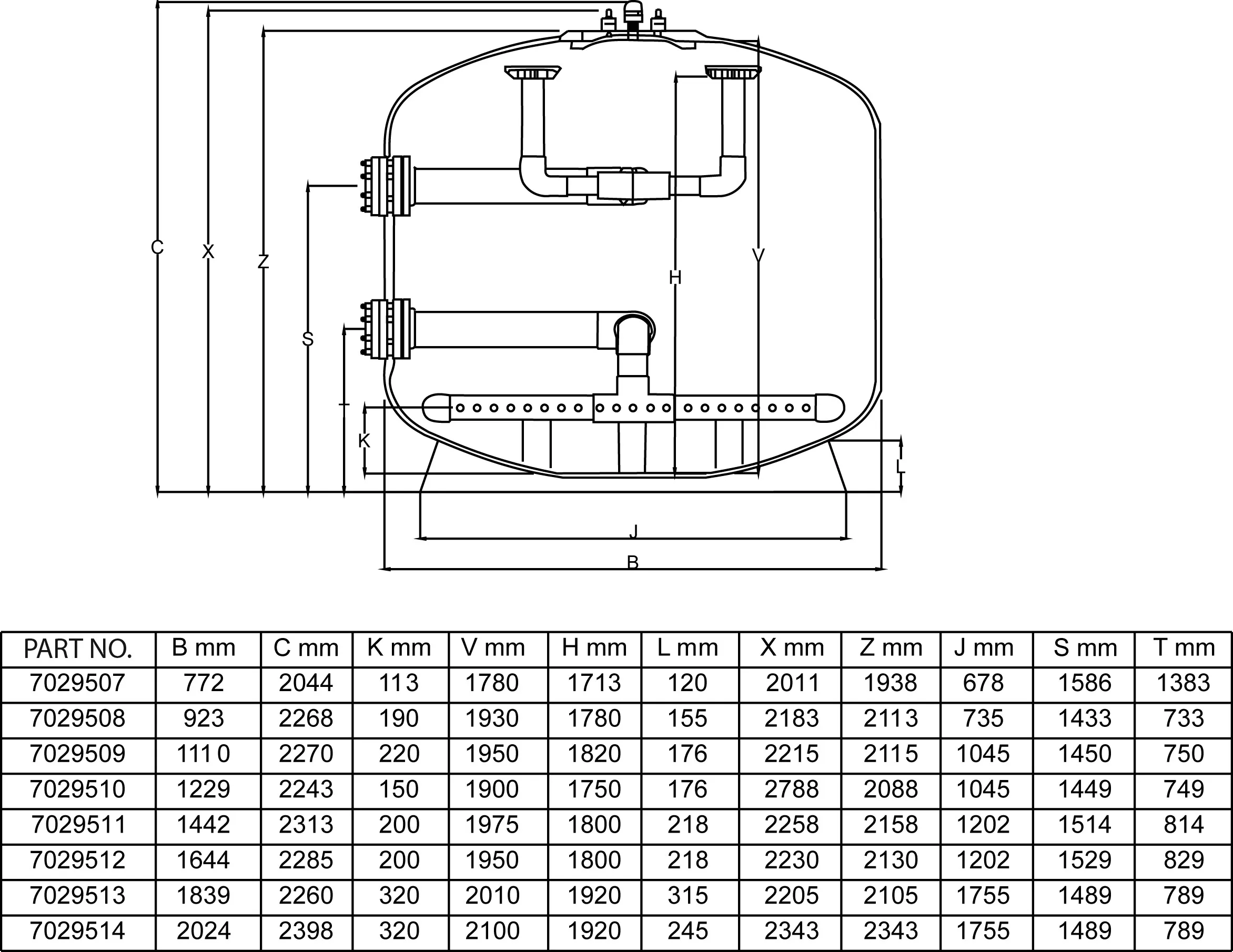

Variants
Part number
Price
Packed per
MSQ
Stock
7029507
3 262,79 €
1 pcs
1 pcs
(0)
7029508
5 427,91 €
1 pcs
1 pcs
(0)
7029509
6 851,16 €
1 pcs
1 pcs
(0)
7029510
7 967,44 €
1 pcs
1 pcs
(0)
7029511
10 086,05 €
1 pcs
1 pcs
(0)
7029512
13 209,30 €
1 pcs
1 pcs
(0)
7029513
16 518,60 €
1 pcs
1 pcs
(0)
