Submersible pump 1 1/4" female thread 1,4A 230VAC black type JS 150 SVMA Vortex with magnetic switch with float switch

Part number 7003480
Skip image gallery
All displayed prices are gross. Please log in or contact sales for custom pricing.
Excl. VAT €390.10 / 1 pcs
€390.10 / pcs
Incl. VAT €390.10 / 1 pcs
€390.10 / pcs
Available at supplier, please contact us - available on request, please contact sales team
pcs
Packed per:
1 pcs
MSQ:
1 pcs

Frequently bought together

Pressure switch 1/4" female thread 1,6 - 4,6bar 12A 230VAC type PC-SK2
7031133
Pressure switch 1/4" female thread 1,6 - 4,6bar 12A 230VAC type PC-SK2

€12.80
Quick coupler forged aluminium 6" female thread CD 160 15bar type Storz 150
0431196
Quick coupler forged aluminium 6" female thread CD 160 15bar type Storz 150

€177.50
Adaptor socket with brass thread POM 10 mm x 3/4" push-in x female thread 16bar black WRAS type Aquaspeed
7029690
Adaptor socket with brass thread POM 10 mm x 3/4" push-in x female thread 16bar black WRAS type Aquaspeed

€14.00
Barbed 2/3 union adaptor PP 3/4" x 16 mm female thread x barbed 4bar black
0121492
Barbed 2/3 union adaptor PP 3/4" x 16 mm female thread x barbed 4bar black

€1.10
Flotide Click connector PVC-U 3/4" female thread x female click grey/black type with waterstop
7010936
Flotide Click connector PVC-U 3/4" female thread x female click grey/black type with waterstop

€4.10
Hunter Sprinkler base plastic 1/2" female thread 4.8bar 40°-360° black type PSU-04 with nozzle 12A
7032579
Hunter Sprinkler base plastic 1/2" female thread 4.8bar 40°-360° black type PSU-04 with nozzle 12A

€4.40
Pipe nipple drinking holder 30° stainless steel 304 1/2" female thread 750 mm type without PVC clamp with double outlet
7010088
Pipe nipple drinking holder 30° stainless steel 304 1/2" female thread 750 mm type without PVC clamp with double outlet

€18.50
Quick coupler PP 2" female part Camlock x female thread 6bar black type Camlock D
0431500
Quick coupler PP 2" female part Camlock x female thread 6bar black type Camlock D

€19.30
Rain Bird Pop-up sprinkler plastic 3/4" female thread 40°-360° black type 5004+PC & FC with flow shut-off
7021632
Rain Bird Pop-up sprinkler plastic 3/4" female thread 40°-360° black type 5004+PC & FC with flow shut-off

€25.70
Non return valve PA glass fibre reinforced 1/2" female thread 6bar DN15 black type Amita
0440873
Non return valve PA glass fibre reinforced 1/2" female thread 6bar DN15 black type Amita

€13.40

Technical details

  • Type
    Vortex with magnetic switch
  • Output Power
    0,2 HP
  • Material impeller 1
    cast iron
  • Colour
    black
  • Connection
    female thread
  • Voltage
    230VAC
  • Max flow rate
    4.8 m³/h
  • Max. temperature
    40 °C
  • Frequency
    50 Hz
  • Type
    JS 150 SVMA
  • Float
    included
  • Power
    0.15 kW
  • Pump body
    plastic
  • Size
    1 1/4"
  • MWC
    6,0
  • Ampere
    1,4 A
  • EAN
    4019305578219
  • Part number
    7003480

Dimensions

  • H-1
    300 mm
  • L
    190 mm
  • W-1
    200 mm
Pump table

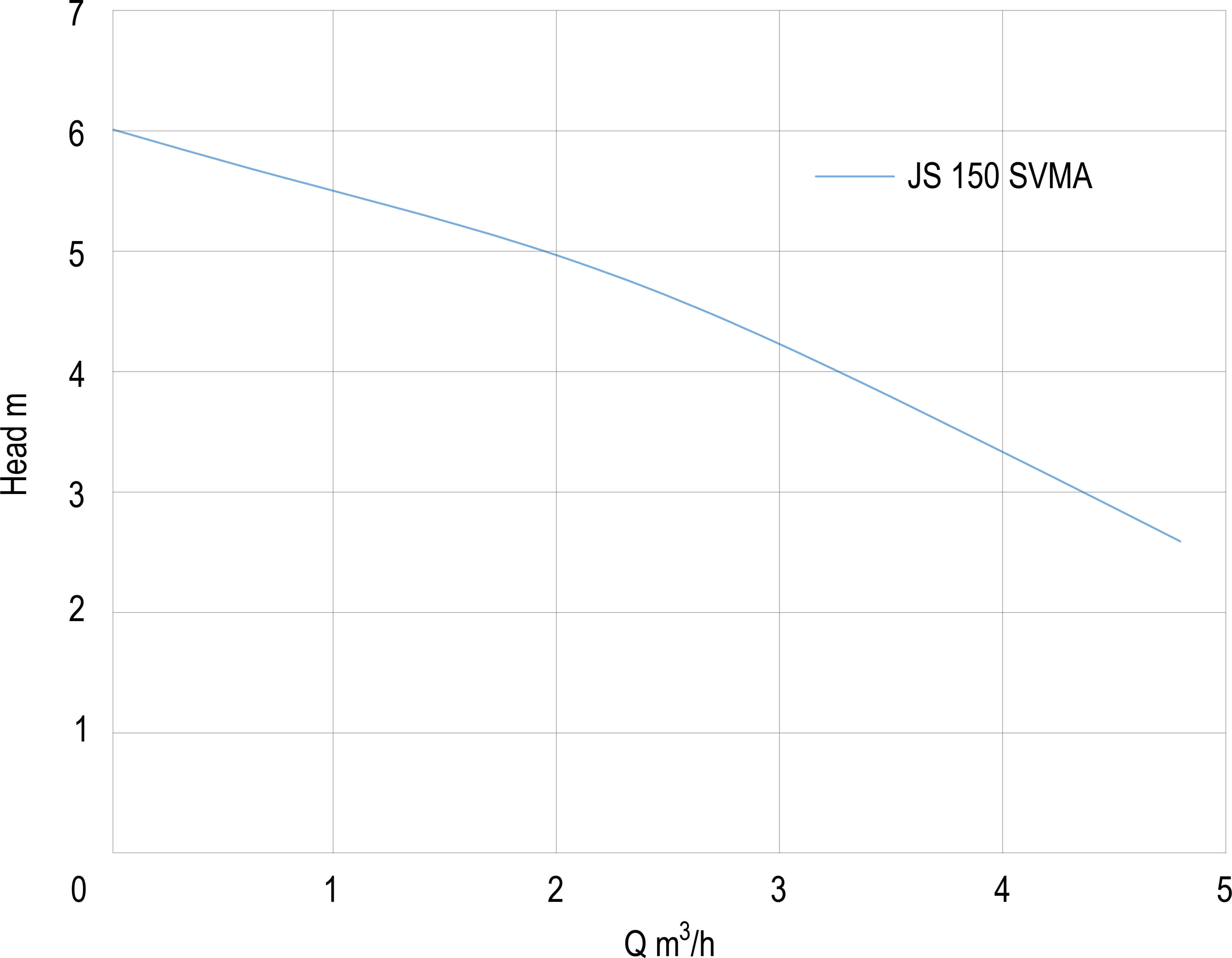

Graph

Product description

With electronic switch
Read more Read less

Barcode

4019305578219
